Our Products

Comprehensive range of high-quality optical network connectivity solutions

Home Fiber Patch Cords Fiber Optic Pigtails: LC/SC/MPO, SM/MM (OM1-OM4), RoHS

Fiber Optic Pigtails: LC/SC/MPO, SM/MM (OM1-OM4), RoHS

Fiber Optic Pigtails: LC/SC/MPO, SM/MM (OM1-OM4), RoHS
Fiber Patch Cords image 1
Fiber Patch Cords image 2
Fiber Patch Cords image 3
Fiber Patch Cords image 4
大图展示
1 / 5

This page presents SOPTO’s fiber optic pigtails—key components for fiber cable termination, used to splice fiber cables and connect (via connectors) to patch panels or equipment (e.g., optical transceivers). They are available in male/female connectors, with female types often paired in patch panels and male types plugging directly into transceivers.
Key details include:

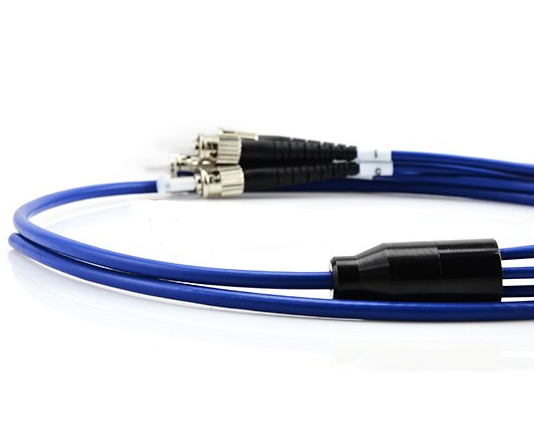

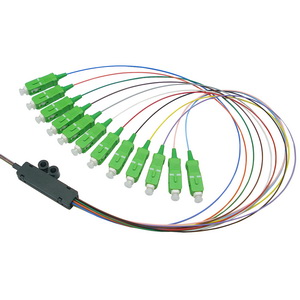

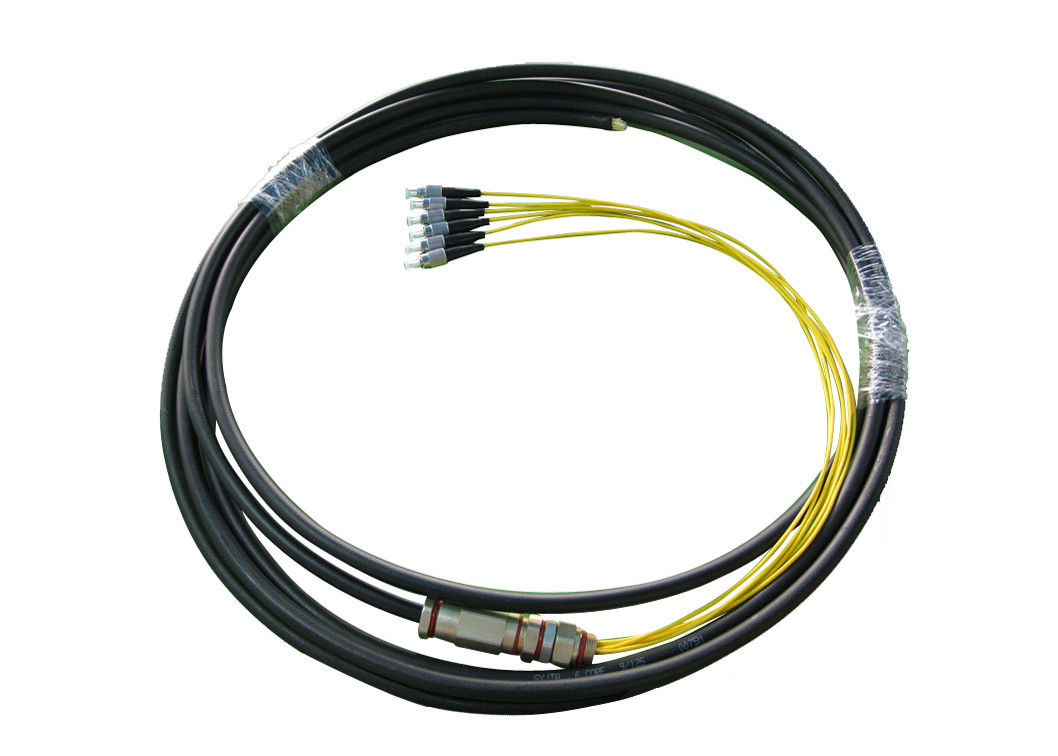

  • Types: 4 main variants—Bunch Fiber Pigtails, Ribbon Fan-out Pigtails, Waterproof Fiber Pigtails, and Armored Bunch Pigtails.
  • Specifications: 1-48 fiber counts; end-face options (PC/UPC/APC); connector types (LC/SC/FC/ST/MPO/MTP/E2000/MTRJ/MU); fiber types (singlemode 9/125µm, multimode OM1 62.5/125µm, OM2 50/125µm, 10G OM3/OM4 50/125µm); jacket materials (PVC/LSZH/OFNR/OFNP/Plenum).
  • Complementary Components: The page also references related fiber accessories like 4-ports fiber access boxes, fiber closures, and rack-mounted fiber patch panels for integrated deployment.

Ideal for building reliable fiber connections in telecom, data center, or FTTX networks.

Product Model
Specifications
Action
SPP-SC-A-1D-09-1V
Pigtail Simplex SC/APC G.652D 0.9mm 1M length PVC
SPP-SC-U-1D-09-1V
Pigtail Simplex SC/UPC G.652D 0.9mm 1M length PVC
SPP-SC-U-1D-09-1.5V
Pigtail Simplex SC/UPC G.652D 0.9mm 1.5M length PVC
SPP-SC-U-1D-09-2V
Pigtail Simplex SC/UPC G.652D 0.9mm 2M length PVC
SPP-SC-U-1D-09-3V
Pigtail Simplex SC/UPC G.652D 0.9mm 3M length PVC
SPP-SC-U-1D-09-4V
Pigtail Simplex SC/UPC G.652D 0.9mm 4M length PVC
SPP-SC-U-1D-09-5V
Pigtail Simplex SC/UPC G.652D 0.9mm 5M length PVC
SPP-SC-U-1D-09-1H
Pigtail Simplex SC/UPC G.652D 0.9mm 1M length LSZH
SPP-SC-U-1D-09-1.5H
Pigtail Simplex SC/UPC G.652D 0.9mm 1.5M length LSZH
SPP-SC-U-1D-09-2H
Pigtail Simplex SC/UPC G.652D 0.9mm 2M length LSZH
