MPO/MTP Patch Cords
Multi-fiber Connectivity Solutions
Key Specifications
About MPO/MTP Patch Cords
MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 6, 8, 12, 24, or 48. These advanced connectors use precision molded MT ferrules, together with metal guide pins and precise housings ensuring optimal fiber alignment when mating.
MPO/MTP connectors are assembled to ribbon or bare ribbon connectors with a convenient push-pull latching mechanism, making them ideal for high-density applications where space and connectivity speed are critical factors.
SOPTO MPO/MTP Product Range

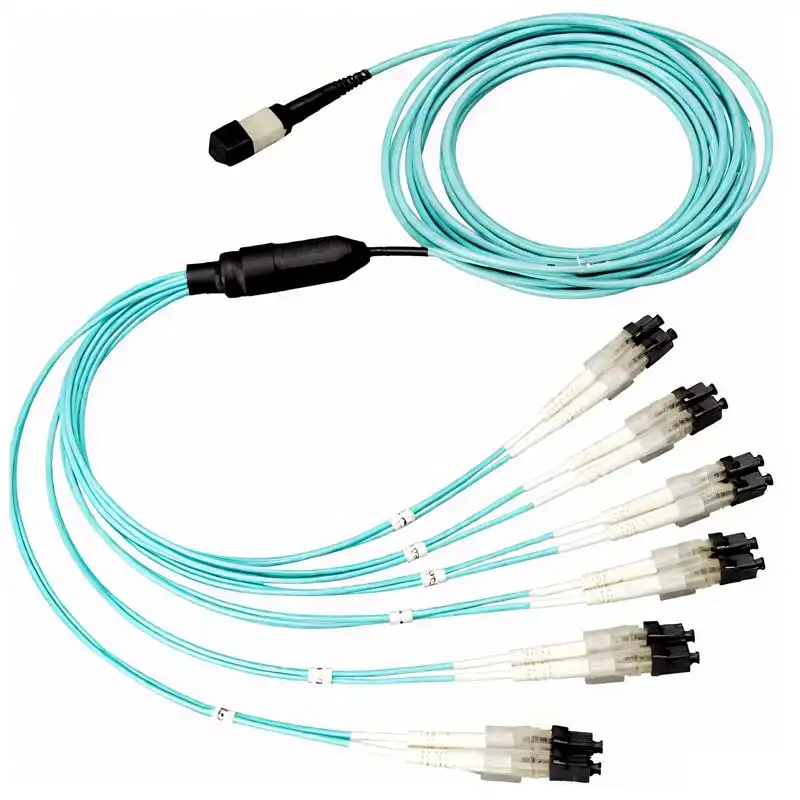

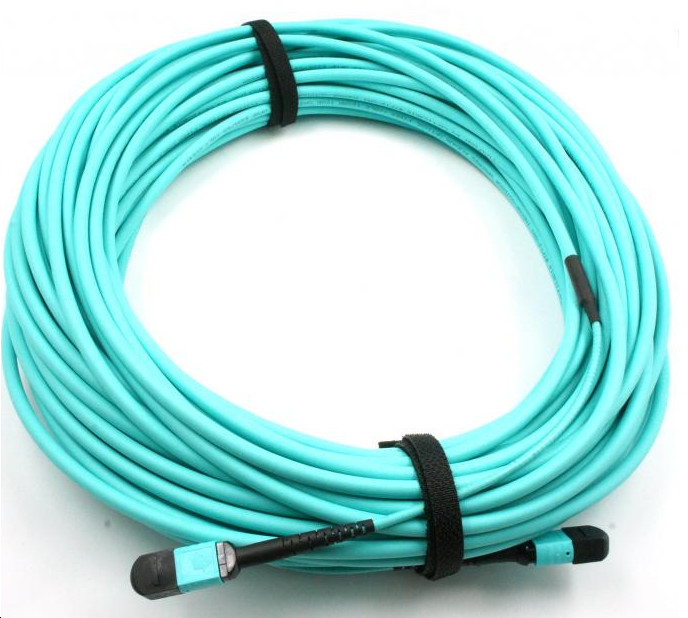

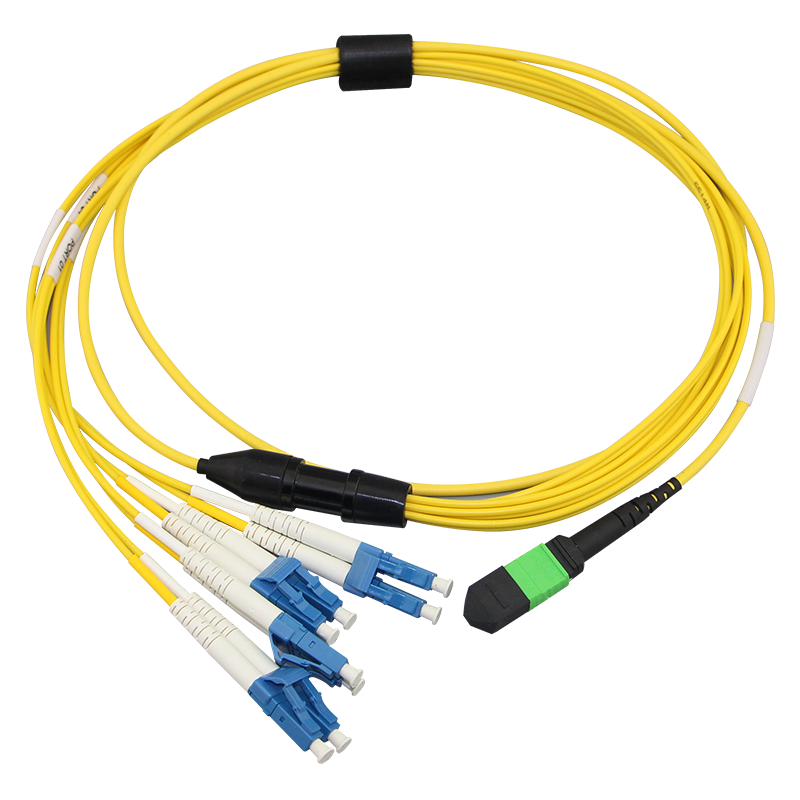

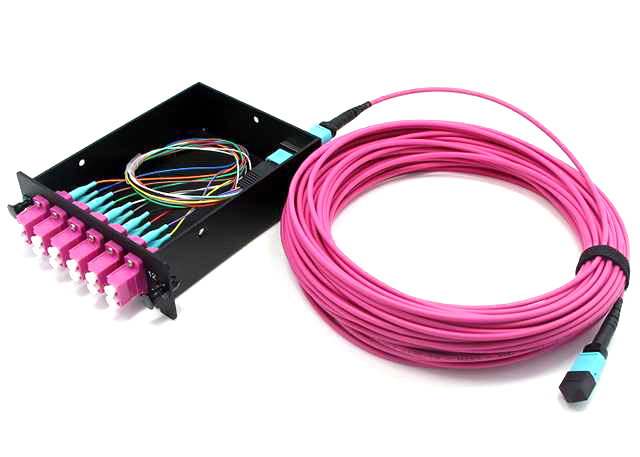

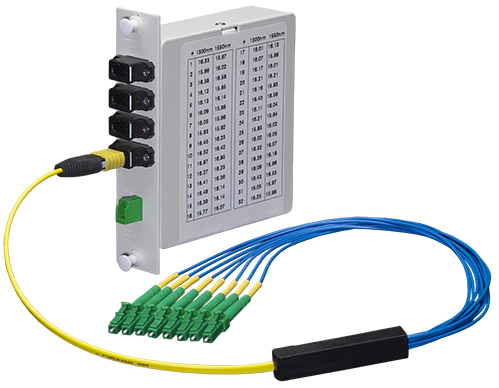

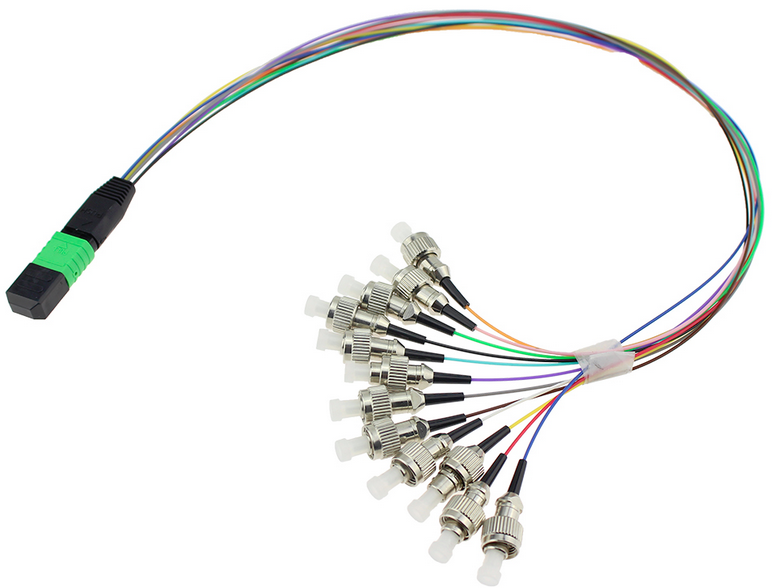

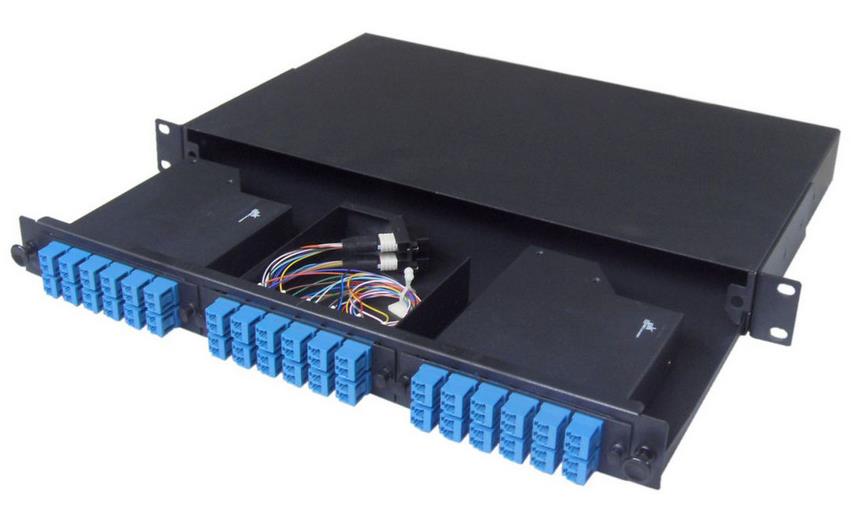

SOPTO supplies a comprehensive range of MPO/MTP products suitable for 40G QSFP+ Transceivers:
Technical Specifications
End Face Type
PC/APC/UPC/Plat Polish
Connector Type
MTP/MPO
Operating Wavelength
850nm/1310nm/1550nm
Length
0.5m/1m/2m/3m/5m/7m/12m or customer specified
Insertion loss
≤0.35dB SM; ≤0.5dB MM
Return loss
>60dB SM; >35 MM
Interchangeability
≤0.2dB
Repeatability
≤0.2dB
Insert-pull test
>1000 times
Fiber Type
SM, MM, OM1, OM2, OM3, OM4, duplex, simplex
Fiber Diameters
9/125µm SM; 62.5/125/µm, 50/125µm MM
Material Feature
PVC/LSZH/OFNR/OFNP/Plenum
Storage Temperature
-40~+85°C
Operating Temperature
-25~+85°C
Storage Humidity
95%RH (Non-Packaging)
Packing
Blister Box Packing
Standard
ROHS
Common Applications
High-density data center connections for 40G/100G/400G networks
Backbone cabling systems requiring high fiber counts
Telecommunication networks and data transmission systems
Local Area Networks (LANs) and Storage Area Networks (SANs)
