SOPTO’s Comprehensive Indoor Optical Distribution Frames (ODF)
Including floor-type ODFs and ODF unit boxes—engineered for high-capacity, organized fiber management in indoor environments (e.g., telecom rooms, data centers).

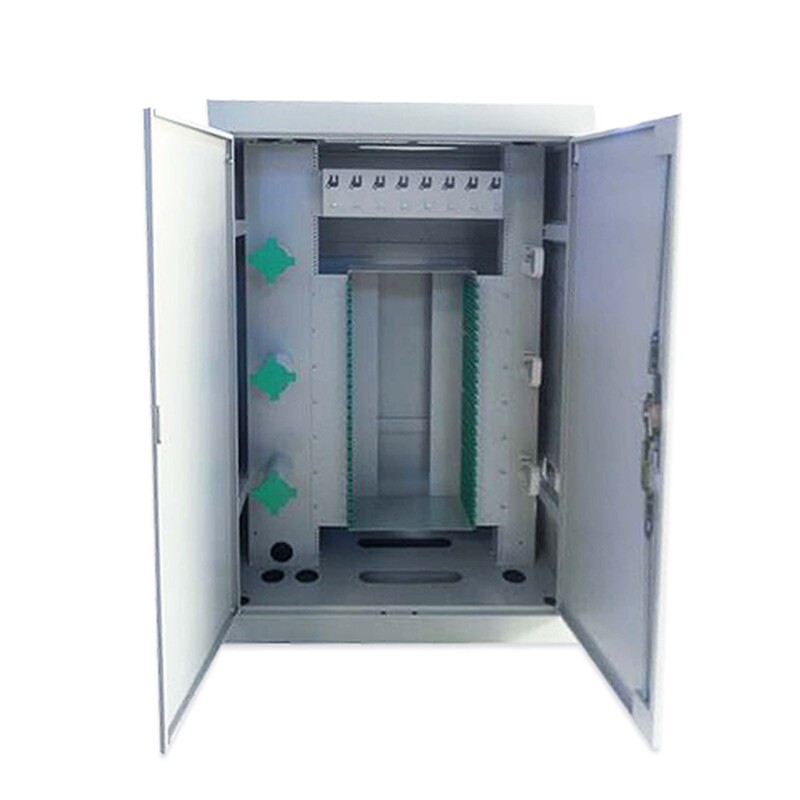

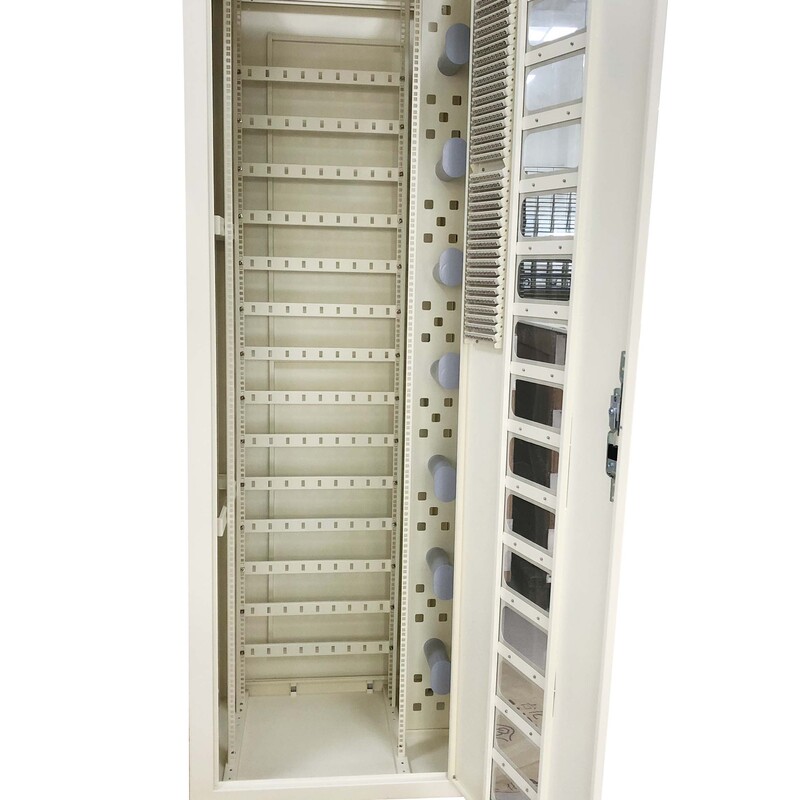

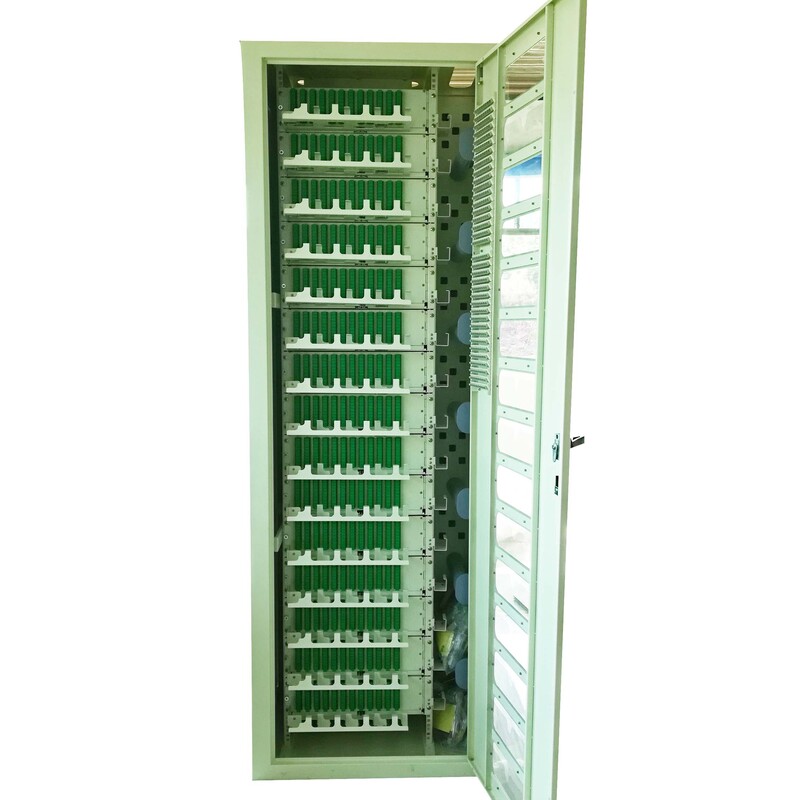

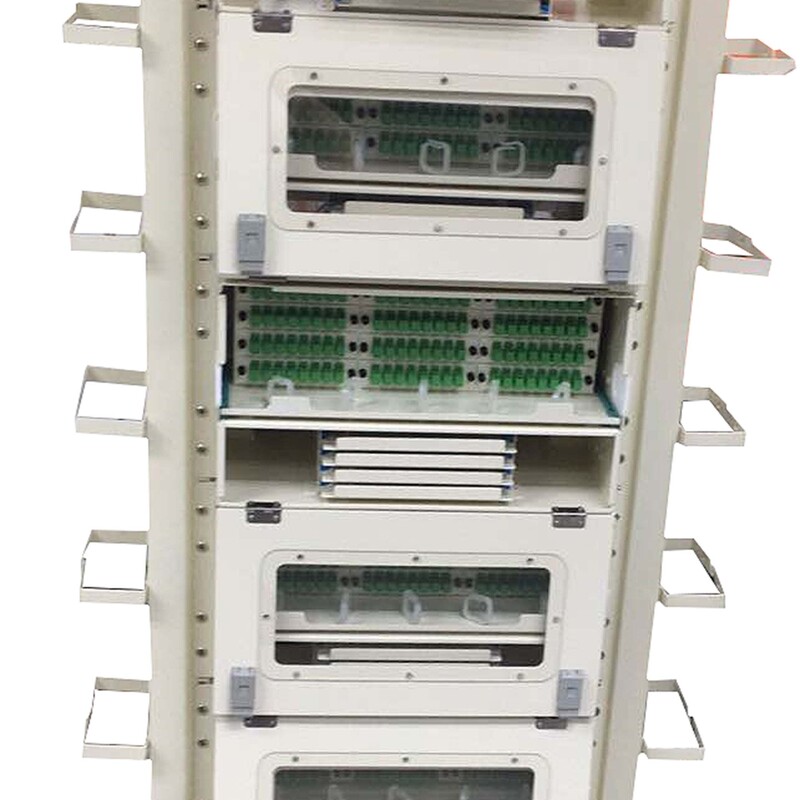

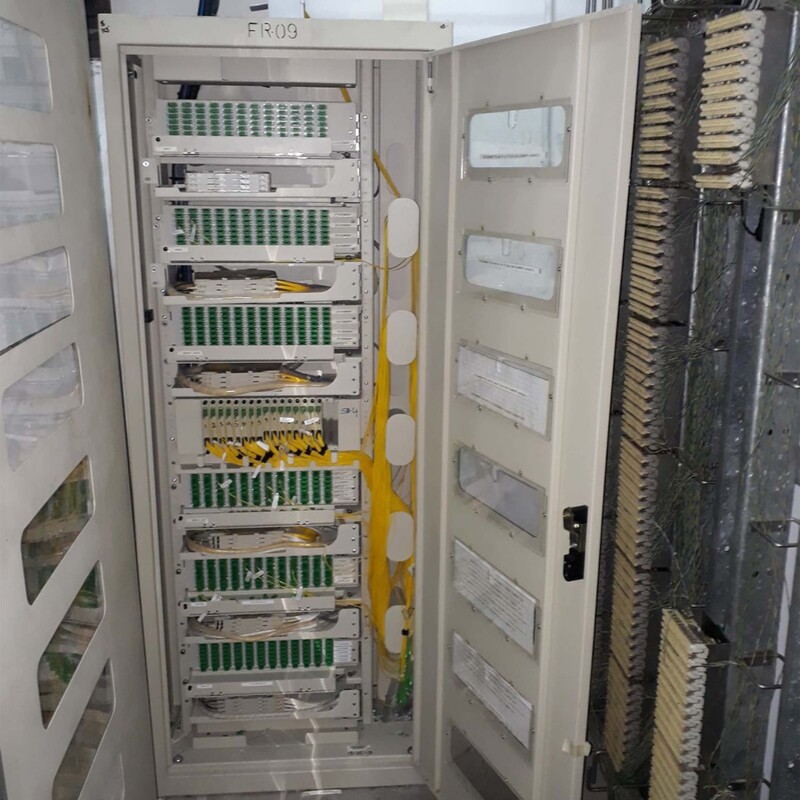

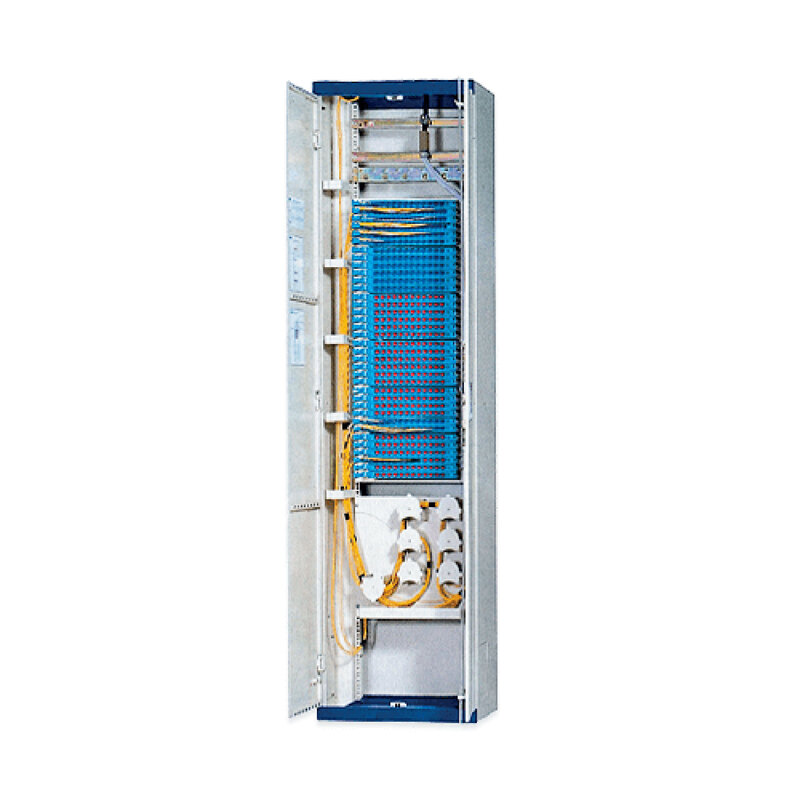

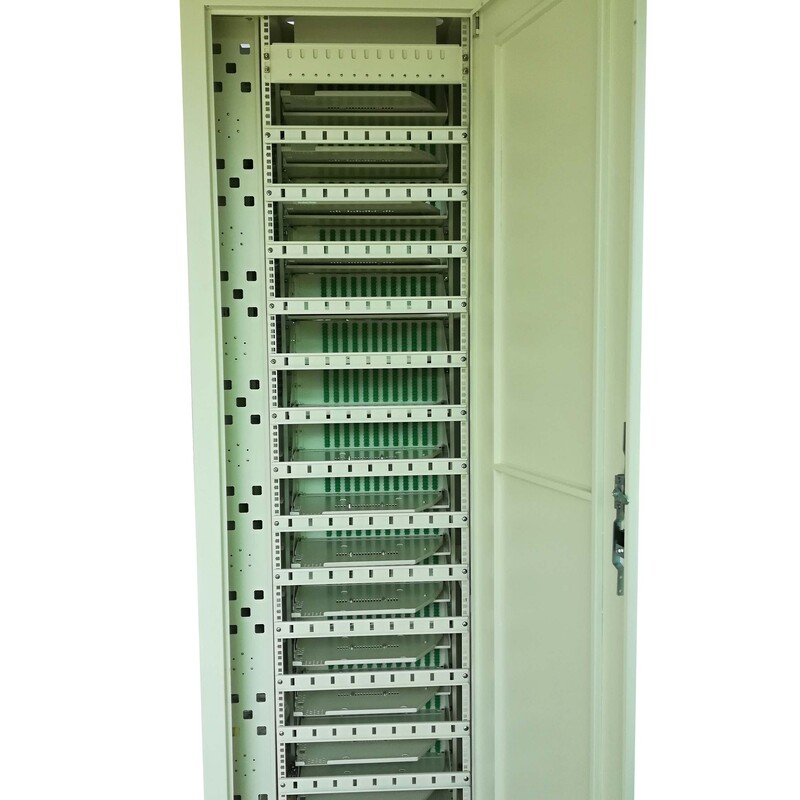

1. Floor-Type ODFs
Capacity
Ranges from 48 cores to 1800 cores (max), with core counts including:
48 60 110 144 200 288 360 576 672 720 840 1032 1152 1296 1440 176 1800
Key Features
- Most are Metal-built (various types: A/B/C/D/E/F/G/H)
- Connector types include SC (dominant), FC, and duplex LC (672-core model)
- Some include splice trays (e.g., 110-core straight blade type) or winding columns (176-core custom model)
- Many sold without ODF unit boxes (unit boxes may require separate 24-core splice trays for some models)
- Custom dimensions available (e.g., 176-core: 400×2200×300mm, 1032-core: 2600×800×450mm)
2. ODF Unit Boxes
Capacity
12 to 288 cores, with rack-mount heights (1U-16U) for standard cabinets:
12 24 48 64 72 96 120 144 216 288
Key Features
- Materials include Metal (A/B/C/D/F), aluminum (AL, including customized types), iron plate (E type), and cold-rolled plate (G type, custom)
- Connector support for Simplex SC, Duplex SC/LC, and Simplex FC
- Options for with/without doors (e.g., 12-core 2U with door, 24-core 1U without door) and with/without splice trays (e.g., 96-core 6U without splice tray)
- Unique designs like rotary-type (24-core 1U) and 64-core models with card slots for 8 plug-in splitters
Common Traits
All ODFs are sold without adaptors, pigtails, or splitters (hardware-focused for flexibility); extensive customization options for materials, dimensions, and configurations to fit specific project needs.
Ideal for indoor fiber networks requiring scalable, durable, and adaptable fiber distribution—from small-scale (12-core unit boxes) to large-scale (1800-core floor-type frames).
