1 Introduction to MPO/MTP to LC/SC Cassette Module
The MPO/MTP to LC/SC Cassette Module is a high-density, pre-terminated fiber optic cabling solution, mainly used in data centers, enterprise networks, and high-performance computing environments. The module can achieve efficient connection between MPO/MTP trunk cables and LC or SC interface devices, reduce the need for on-site splicing, and improve the flexibility and manageability of the cabling system.
The internal structure of the Cassette module usually contains a pre-terminated MPO/MTP fiber patch cord, which is precisely branched to multiple LC or SC adapter ports. Its main features include:
High-density design
Multiple modules can be installed in a single 1U rack to improve rack space utilization.
Plug and Play
Factory termination and testing, reducing on-site installation time and errors.
Modular management
Easy to upgrade and maintain, suitable for fiber optic cabling system expansion.
Strong compatibility
Supports OM3/OM4/OM5 multi-mode optical fiber and OS2 single-mode optical fiber, adapting to different needs.
MPO/MTP to LC/SC Cassette Module Internal Structure
2 Application Scenarios of MPO/MTP to LC/SC Cassette Module
High-speed network cabling in data centers
Used for high-density fiber interconnection between servers, storage devices, and switches. Supports 40G, 100G, and higher-speed networks, simplifying fiber management and ensuring efficient expansion.
HPC and cloud computing environments
Provides stable, high-speed, low-latency fiber connections. Supports parallel data transmission and ensures large-scale data throughput for computing clusters and cloud data centers.
Enterprise networks and telecom rooms
Used in fiber backbone networks to connect multiple floors or data nodes. Improves fiber resource utilization and simplifies network management and maintenance.
Broadcast and video transmission systems
Transmits high-resolution video signals (4K/8K) for video streaming, remote conferencing, and broadcast networks. Meets high-bandwidth, low-latency requirements.
3 MPO/MTP to LC/SC Cassette Module Selection Points
Fiber type
Select single-mode (OS2) or multi-mode (OM3/OM4/OM5) based on application requirements.
MPO/MTP interface
Choose 12/24/48-core connectors to meet system compatibility needs.
Adapter type
LC or SC adapters must match the terminal device port type.
Insertion loss
Low-loss version is suitable for high-speed, high-density networks to reduce signal attenuation.

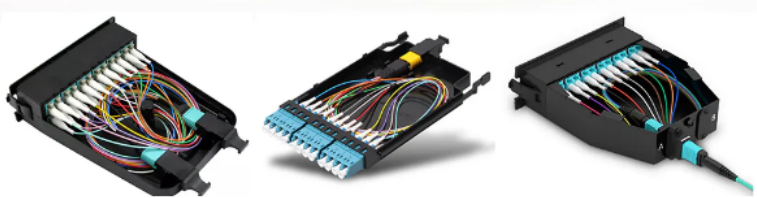

MPO/MTP to LC/SC Cassette Module Selection Reference
MPO/MTP to LC/SC Cassette Module is a key component of data centers and fiber backbone networks, enabling efficient, flexible and scalable fiber connection solutions. With the growing demand for high-speed transmission, this module will play an important role in data centers, enterprise networks, cloud computing, HPC and high-definition video applications.
